Barrier Island Getaway

Plan SL-1620

Details

Basics
Bedrooms: 3 actual, 3 possible
Baths: 3 full, 1 half
Floors: 2
Garage: 1
Foundations: Pole/Pier
Master Location: Main Floor
Laundry Location: Main Floor
Fireplaces: 0
Style / Influences

Recreation/Vacation Shingle Craftsman Cottage Bungalow California

Kitchen Features
Open Layout Snack Island
Master Suite Features

Walk-in Closet Dual Sinks Shower Private Toilet

Additional Features
Porch
Square Footage

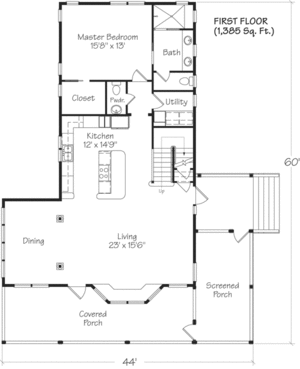

Main Floor: 1385

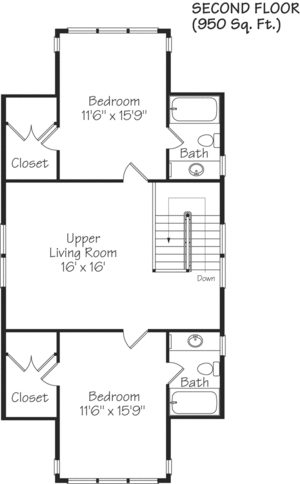

Upper Floor: 950
Garage: 0
Dimensions

44 '- 0 " W x 60 '- 0 " D x 28 "- 0 " H

Plate Heights
Main Floor: 9.0 '
Upper Floor: 9.0 '
Construction
Ext. Wall Construction: 2x6
Roof Framing: Gable

Description

This cottage is a gracious three-bedroom shingled bungalow with extensive shady outdoor living porches that are 10-ft. deep. The ground floor porches may be screened or left open. The ground floor living spaces are open and full of light. This home design works well on a corner lot or a standard rectilinear property. The master suite is on the main level with all major living spaces. The second floor contains two bedrooms, two full baths and a large secondary living area ideal for informal family purposes. This design is ideally suited for a second home or as a starter residence. A bonus design is included for a two-story stand-along structure that includes space for two golf carts on the first level and a one-bedroom and bath space upstairs. The second floor heated area is 240 sq. ft.

Plan Packages

CAD File
Electronic files of the plan. This, or a reproducible set, is required if you plan to customize the house plan.
Reproducible + 1 set
Best for construction / customization. (Includes one free blueprint)
Mirrored (reverse print) sets (Floor plans are reversed from plan as shown. All text and dimensions read backwards.)
Construction Set - 8 Sets
Eight full sets of construction drawings.
per additional set.
Mirrored (reverse print) sets (Floor plans are reversed from plan as shown. All text and dimensions read backwards.)
Planning Set
Recommended for review/study only. Stamped "Not For Construction". Includes all exterior elevations and floor plans. Purchase price will be applied to any upgrade order for the same plan, based on availability (8 sets, CAD or Reproducible)
per additional set.
Mirrored (reverse print) sets (Floor plans are reversed from plan as shown. All text and dimensions read backwards.)
