Bedrooms:
3
actual,
1
possible
Baths:
3
full,
1
half
Floors:
3
Garage:
0
Foundations:
Slab
Master Location:
Third Floor
Laundry Location:
Main Floor
Fireplaces:
0
Waterfront Villa
Plan SL-1452
Details
|
Basics
Style / Influences
Beach/Coastal Bungalow California
Kitchen Features
Open Layout
Island
Master Suite Features
Dual Sinks Shower Tub Private Toilet Adjoining Room
Additional Features
Porch
Courtyard
Patio/Terrace
|
Square Footage

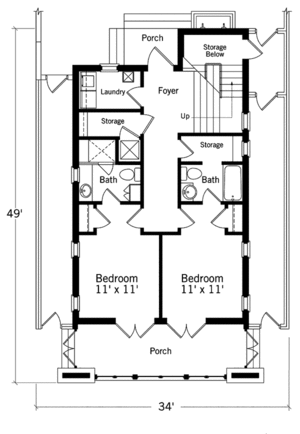

Main Floor:
1076

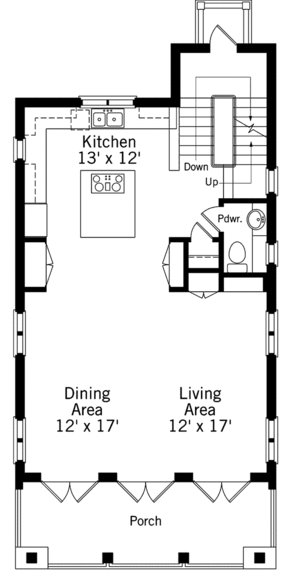

Upper Floor:
1109

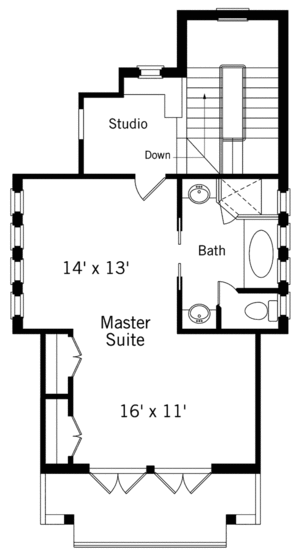

Third Floor:
1008
Total Heated Square Footage:
3193
Dimensions
34 '- 0 " W x 49 '- 0 " D x 38 "- 0 " H
Plate Heights
Main Floor:
9.0
'
Upper Floor:
11.0
'
Construction
Ext. Wall Construction:
Roof Framing:
Gable
|
Description
Plan Packages
Reproducible + 1 set
Best for construction / customization. (Includes one free blueprint)
Mirrored (reverse print) sets
(Floor plans are reversed from plan as shown.
All text and dimensions read backwards.)
Construction Set - 8 Sets
Eight full sets of construction drawings.
per additional set.
Mirrored (reverse print) sets
(Floor plans are reversed from plan as shown.
All text and dimensions read backwards.)
Planning Set
Recommended for review/study only. Stamped "Not For Construction". Includes all exterior elevations and floor plans. Purchase price will be applied to any upgrade order for the same plan, based on availability (8 sets, CAD or Reproducible)
per additional set.
Mirrored (reverse print) sets
(Floor plans are reversed from plan as shown.
All text and dimensions read backwards.)
